VISTA508 Low Power Display

Description

The Vista508 is a MIPS display with excellent power consumption characteristics that is pin compatible with the very popular nice!view display.

A ZMK module for driving the Vista508 can be found in the Rolio46 firmware repository.

Specifications

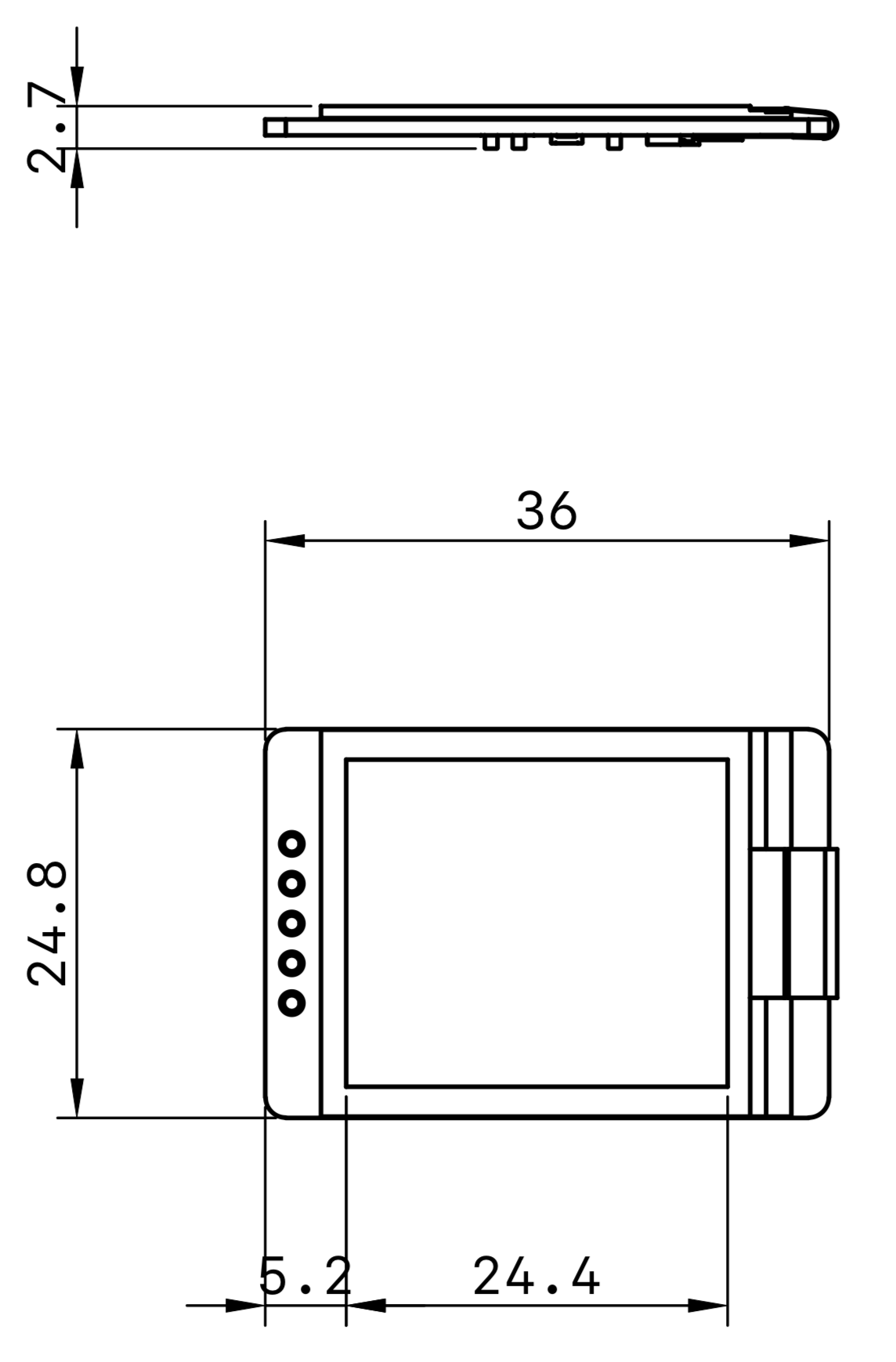

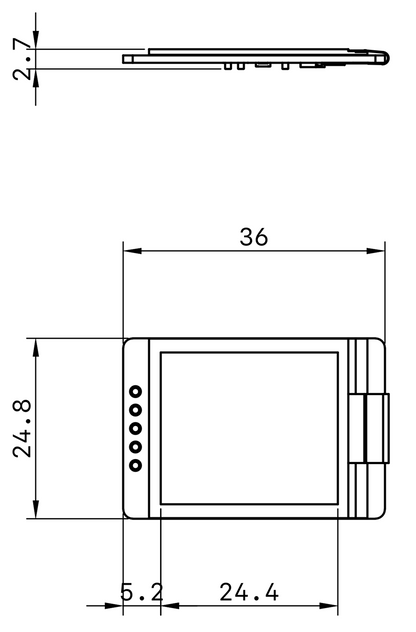

• Display area of 20.88x24.36mm
• 144x168 pixels
• Power consumption (Typical - Maximum)
  • Fixed image: 7.5-38uA
  • Updating image at 1 frame per second (30 fps supported): 10-45uA
• Data sheet for display module

Includes

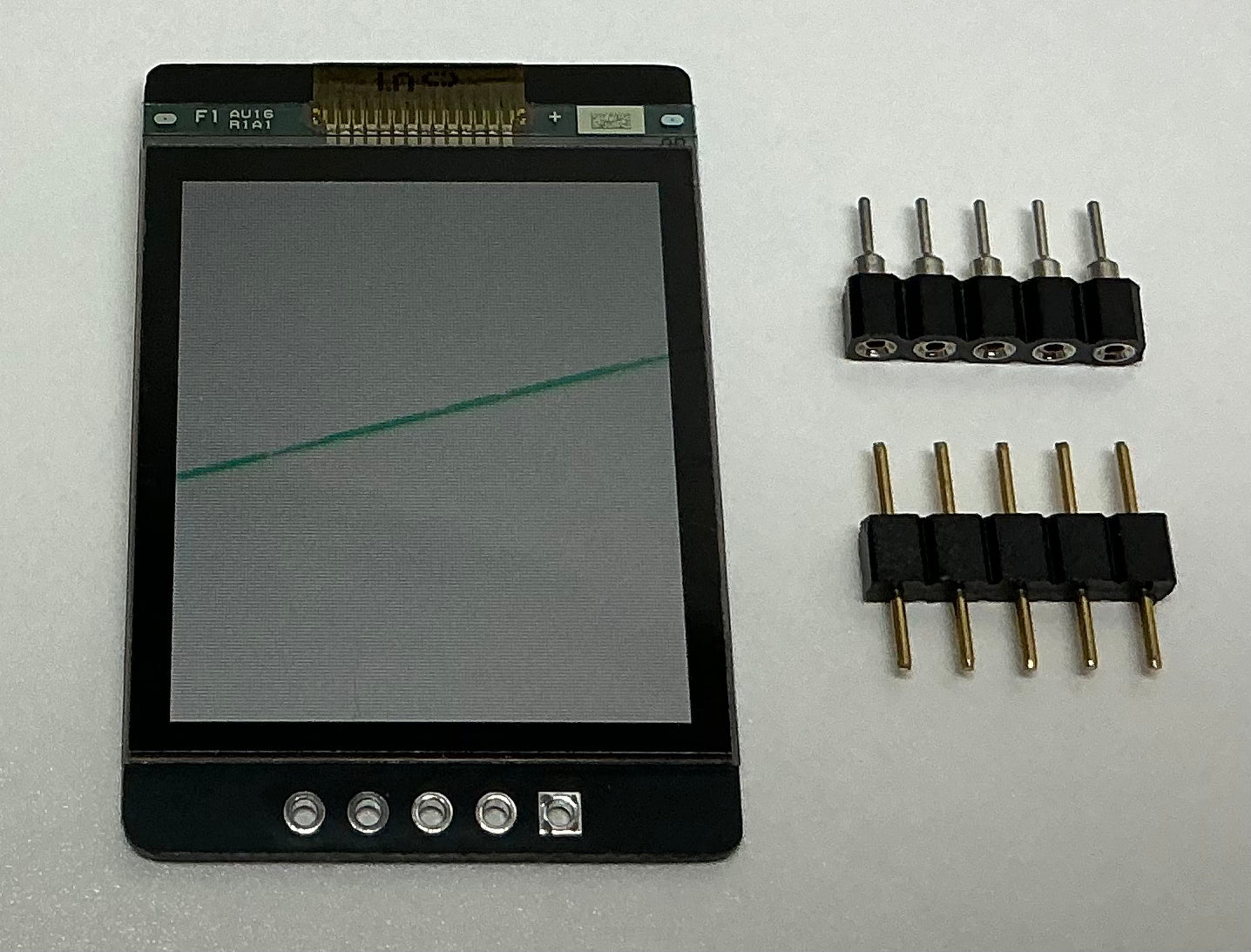

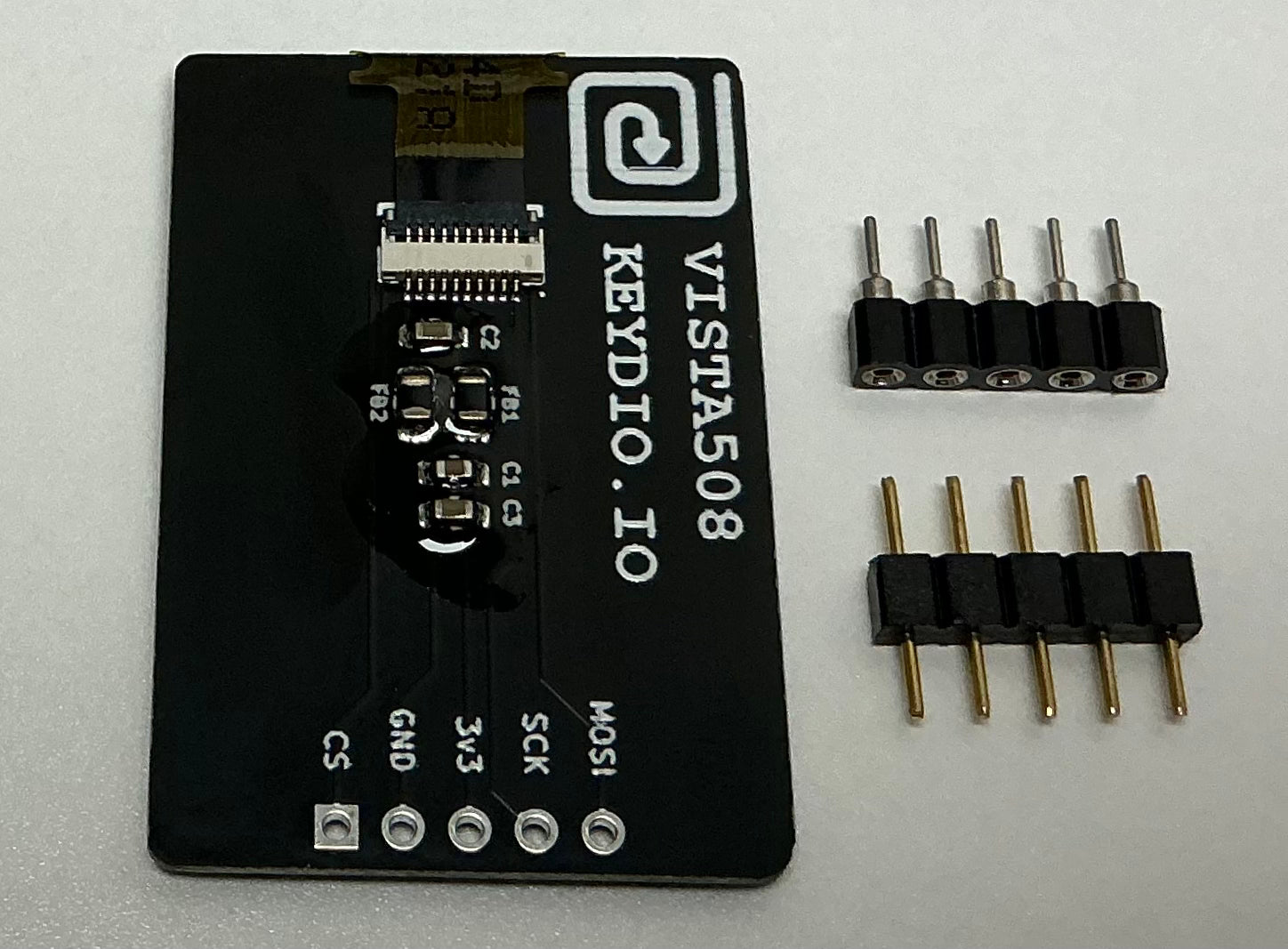

• 1x Vista508 Display
• 1x hot swap connector

Notes

• You will need two displays to build a Rolio46, one for each half.
